MakerBot SKETCH LARGE - Single Printer Setup
Couldn't load pickup availability
Do you need help choosing the right material or 3D Printer for your application or require a quote to purchase? Contact Us
PRINT BOLDER AND BIGGER WITH EDUCATION RESOURCES EVERY STEP OF THE WAY.
Our largest 3D printer offering with printer training, student curriculum and filament for the whole semester included.
DRIVE INNOVATION WITH BIGGER POSSIBILITIES

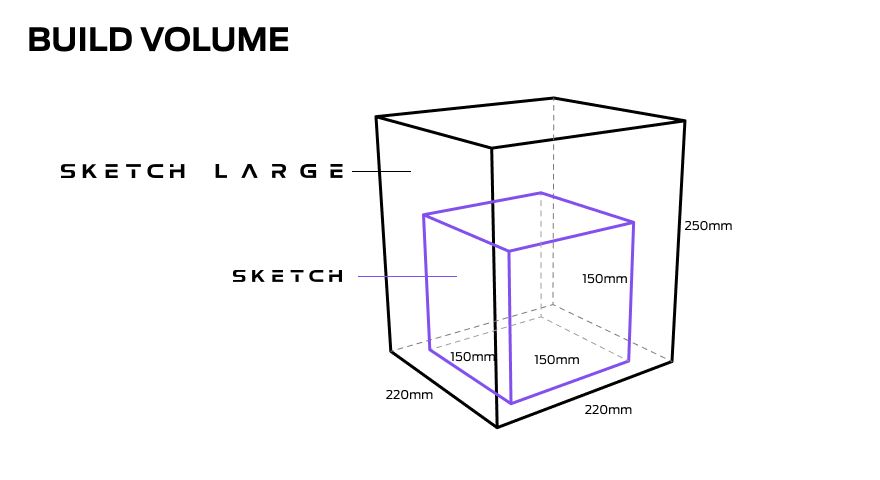

Leverage the printer’s full print chamber and print up to 8.6” in length, 7.8” in width and almost 10” in height!
With a bigger printer comes the ability to print larger projects. From printing different bridge structures for physics, printing the skull of t-rex for biology class, or leveraging 3D printing for problem-solving projects.
Let students design as big as their imagination.
STREAMLINING PRINTING FOR THE WHOLE CLASSROOM
With the SKETCH Large you can skip the 3D printing bottleneck and print up to 10 projects on a build plate at the same time, giving you your time back in the classroom and students more opportunities to 3D print.
Get more printed in less time, with the SKETCH Large you can load up the build plate with 10 projects at a time.
MORE THAN JUST A 3D PRINTER
KICKSTART 3D PRINTING ON DAY ONE
With over 15 hours of student curriculum accessible online, our Certification program gives your students the tools to build and strengthen their design thinking skills with 3D printing.
CURRICULUM THAT’S READY TO GO
Get access to community-driven lesson plans reviewed & approved by MakerBot Education. Find lesson plans designed for grade levels and subjects applicable to your classroom and curriculum.
CLASSROOM-READY SOFTWARE
Turn your students’ digital models into 3D prints with MakerBot CloudPrint, a cloud-based software that requires no software installation or student account creation.

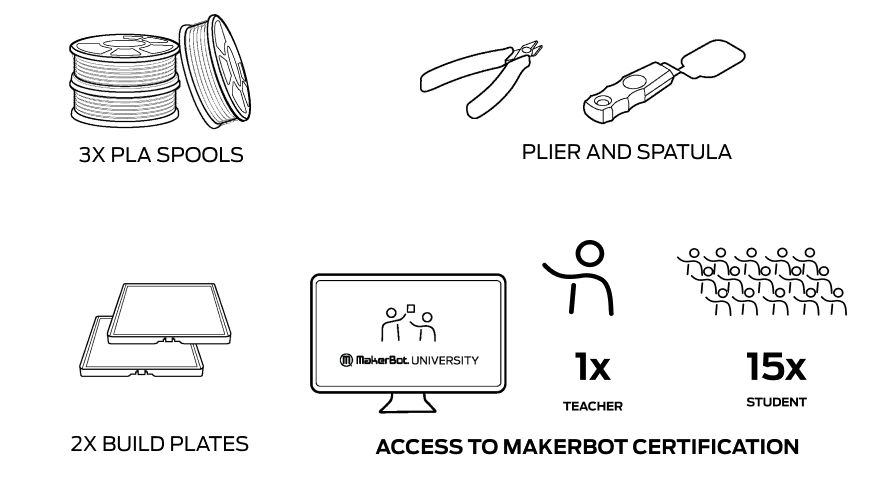

WHAT'S INCLUDED
Printing Capacity
- 670 cubic inches of printing space
Enough Printing for a Whole Semester
- (3) Spools of Easy to Print, PLA Filament
3D Printer Training & Design Thinking Courses
- (1) Teacher Seat in Printer Training Course & Curriculum Creation Course
- (15) Student Seats in Printer Training Course & Design Thinking Courses
Classroom 3D Printing Management
- Cloud-based, printer preparation software
Printer Features to Keep 3D Printing Easy and Worry-Free
- (2) Flexible Build Plates
- Heated Build Plate
- Enclosed Print Chamber & Air Filter
- Onboard Camera
- Spatula & Snippers
TECH SPECS
PRINTING
| Print Technology | Fused deposition modeling (FDM) |
| Build Speed | Max Print Speed: Up to 150 mm/sec |
| Layer Resolution | Maximum Capability: 100 - 400 microns Print Mode tuned for: 200 microns to provide an optimal balance of high surface quality and quick print time |
| Maximum Build Volume | 220mm x 200mm x 250mm [8.66in x 7.87in x 9.84in] |
| Supported Materials | MakerBot PLA for SKETCH |
| Maximum Heated Build Plate Temperature | 110C [230F] |
| Operating Volume | 50 dB |
| Recommended Print Mode | Balanced |
HARDWARE
| Print Heads | 1 (user replaceable) |
| Nozzle Diameter | 0.4 mm |
| Nozzle Material | Stainless Steel (SU304) |
| Sensors | Filament Detection and Auto Load/Unload |
| Display | 109mm color touch screen [4.3in color touch screen] |
| Build Plate | Heated with removable, flexible build surface |
| Build Surface | Grip Surface |
| Camera Resolution | 2 megapixels |
| Ambient Operating Temperature | 15C to 30C [59F to 86F] 10% to 70% RH non-condensing |
| Storage Temperature | 0C to 55C [32F to 131F] |
| Filter | Particle Filter |
SIZE & WEIGHT
| Product Dimensions | 547mm (H) x 535mm (W) x 470mm (D) [21.54in (H) x 21.07n (W) x 18.50in (D)] |
| Product Weight | 23.2kg [51.15lb] |
| Shipping Weight | 32.5kg [71.65lb] |
| Shipping Box | 675mm (H) x 569mm (W) x 591mm (D) [26.57in (H) x 22.40in (W) X 23.27in (D)] |
SOFTWARE
| Software Bundle | MakerBot CloudPrint |
| File Types | MakerBot (.makerbot), STL (.stl) .catpart .dae .gib .iges .ipt .obj .par .sab .sat .sldprt.Thing .wrl x_t .3mf |
| Recommended Browser | Latest version of Chrome, Edge, Firefox, or Safari |
