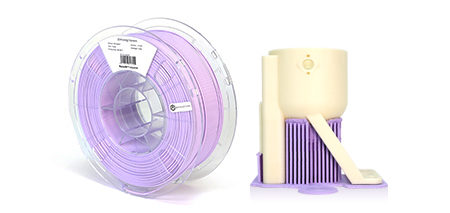

Raise3D Industrial PPA Support Filament - Purple - 1.75mm - 1KG

Only 2 left
SKU: OC-Rai-9565 Barcode: 6970240723745
Regular price $199.95 CAD
Regular price -7% $214.95 CAD Sale price $199.95 CAD

Do you need help choosing the right material or 3D Printer for your application or require a quote to purchase? Contact Us

3d filament net weight MATERIAL NET WEIGHT: 1KG
Custom sizes may be available, contact us for details.
3d print settings PRINT SETTINGS: SEE BELOW.
Print settings listed in the product description below.
Contact us to inquire about documentation availability.

PPA Support

A break-away support material designed for the composite filaments based on PPA.

Raise3D Industrial PPA (Polyphthalamide)Support Filament is a break-away support material specially developed for PPA (Polyphthalamide). During 3D printing process, it creates a stable support structure, provides proper adhesion to interface with printed parts, and counteract with the warpage tendency, therefore it improves the surface quality for overhangs and cavities of the printed parts significantly; After a print is finished, the support structure can be easily removed (break-away) by hands or tools from the printed parts. This support material is more cost-effective comparing with water-soluble support material.

  • Cost effective
  • Easy to remove and break-away
  • No special treatments

Compatibility: Raise3D Industrial PPA CF, Raise3D Industrial PPA GF Filament

It is recommended to use hardening steel nozzle and above grade nozzles.


  • Support material for Raise3D Industrial PPA CF and PPA GF Filament.

      3d printing temperature guideline Printing


      280°C - 290°C
      • Bed temperature (°C)
      • Layer height (mm)
        0.1-0.25 mm (0.4mm nozzle)
      • Printing speed (mm/s)
        30-90 mm/s
      • Cooling fan
      • Drying temperature (°C)
        80-100℃ for 4-6 hours
      • Printing Notifications:

        • It is recommended to use hardening steel nozzle and above grade nozzles.
        • Raise3D Industrial PPA Support Filament is sensitive to moisture and should always be stored and used under dry conditions (relative humidity below 15%).
