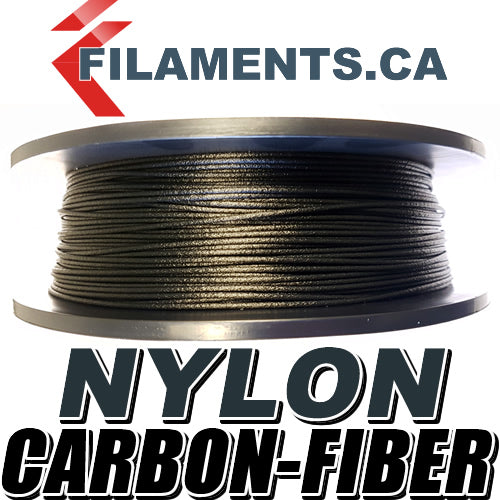

Heavy Duty Carbon Fiber Nylon Filament - 1.75mm

Only 3 left
SKU: 11-G3-4318 Barcode: 7145260053
$87.00 USD
Net Weight:

Do you need help choosing the right material or 3D Printer for your application or require a quote to purchase? Contact Us

Our Heavy Duty Carbon Fiber Nylon filament is one of our strongest 3D printing materials! Our tests showed significantly higher strength and toughness compared to CF-PLA, CF-ABS and CF-PETG as well as other name brands of Nylon-CF.

Carbon Fiber Nylon encompasses the attributes of industrial nylon and of carbon fiber in one material:

  • Extremely Tough
  • Tensile strength
  • Impact strength
  • Heat resistance (167°C)
  • Fatigue strength
  • Low warpage
  • Excellent adhesion
  • Added rigidity & lower density compared to standard nylon.
  • Low-Gloss finish
  • Significantly less visible layer lines

** Please note that his material is highly abrasive. We strongly recommend using a hardened nozzle when printing with this material.

Carbon Fiber Nylon PA CF 3D Filament Canada

Nylon Carbon Fiber 3D Filament Canada

 3d filament net weight NET WEIGHT OPTIONS: 0.5 KG (1.1 LB) | 1 KG (2.2 LB) | 2.2 KG (4.85 LB)

3d printing temperature guideline Printing
Temperature:

Notes:
260°C - 280°C

Adviced 3d print speed:
30 - 60 mm/s

Advised Heated bed:
70°C - 80°C

Advised layerheight
For this material we recommend a minimum of 0.2mm layerheight. Due to the length of the fibers layers lower then 0.15mm can cause issues such as clogging or partial clogging of the nozzle.

Cooling fan
50% fan cooling is a good starting point, this gives best performance on overhangs and small details. For best mechanical performance try printing with the least amount of cooling needed, for optimal layer adhesion.
